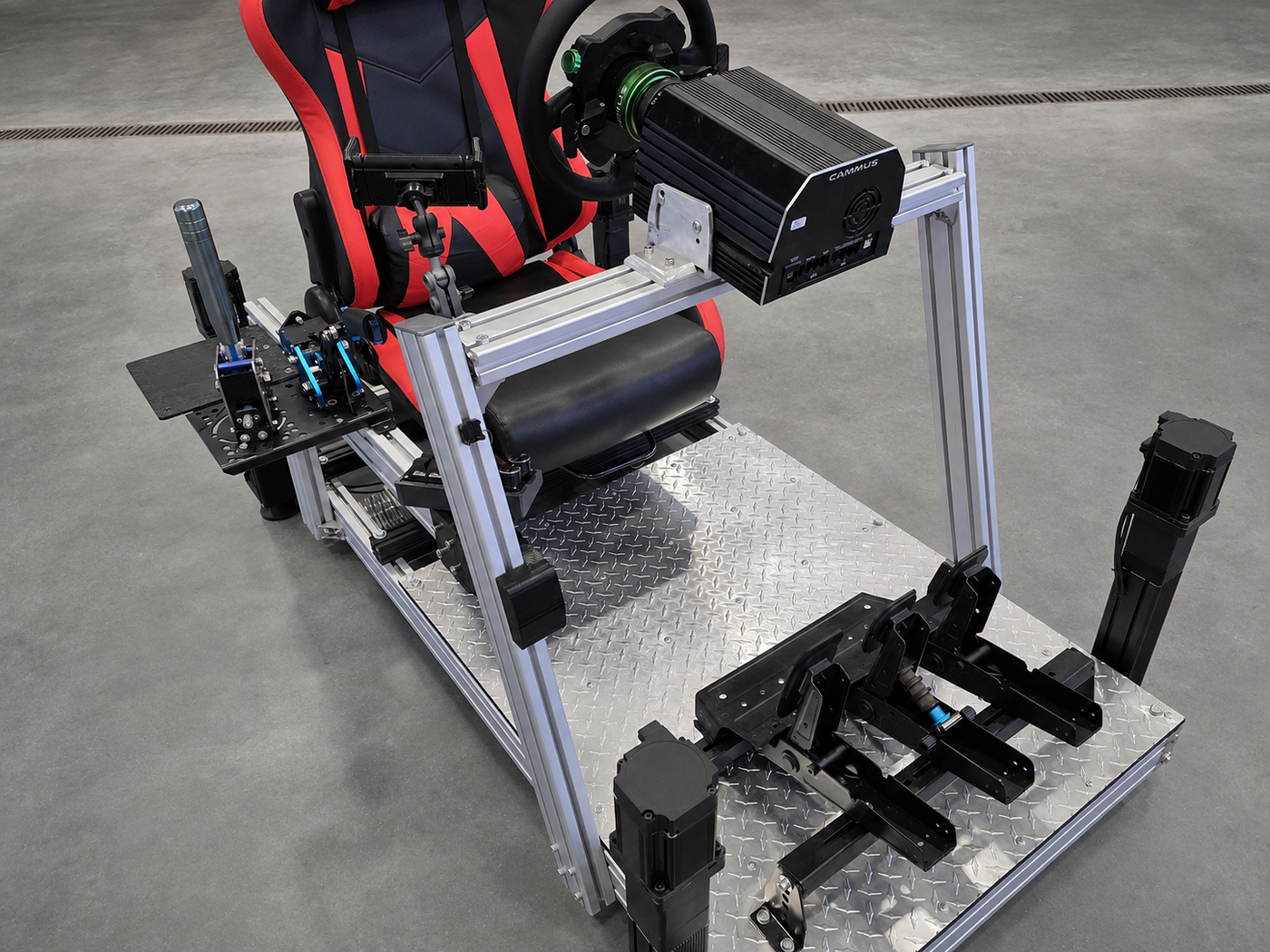

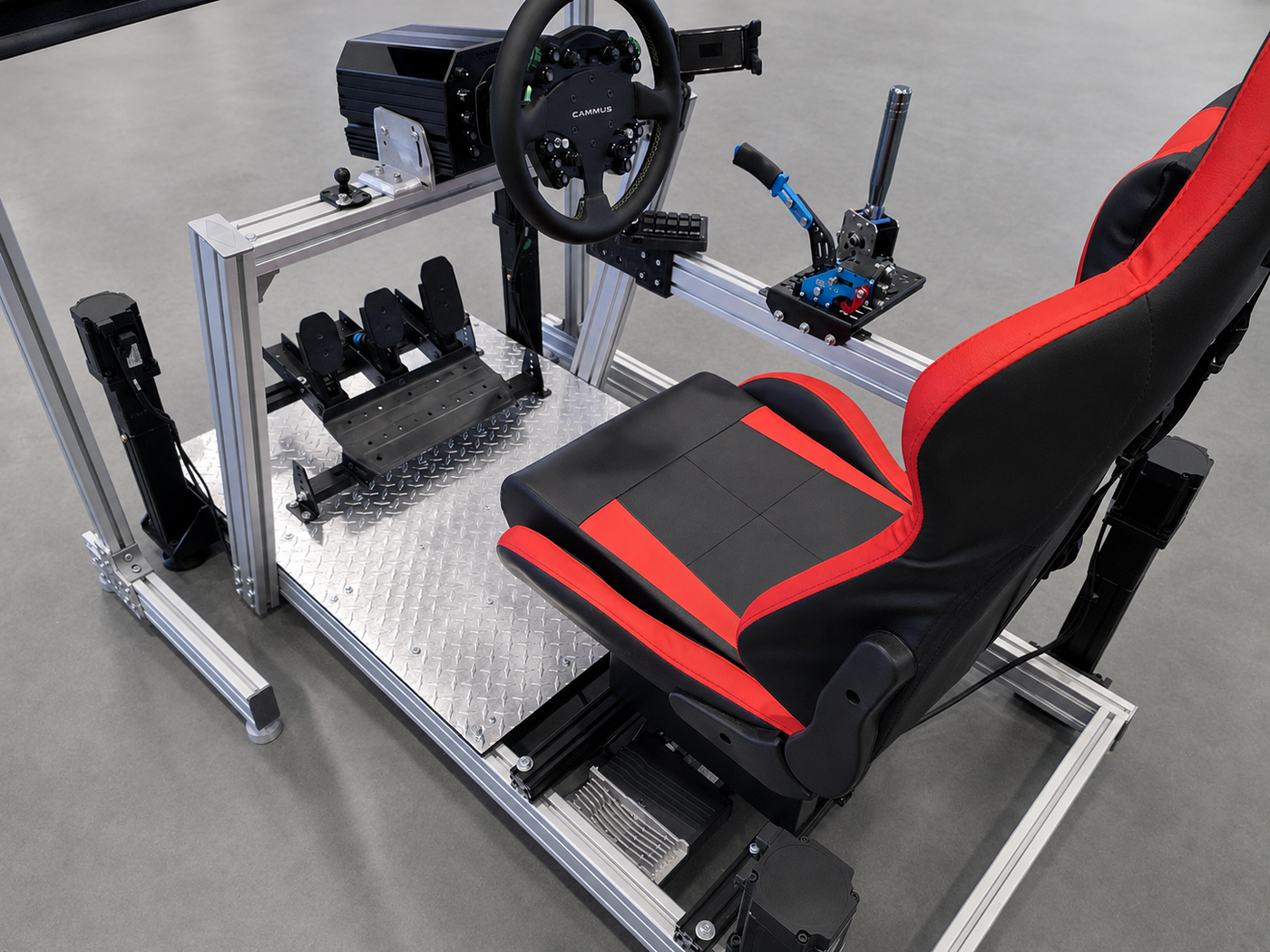

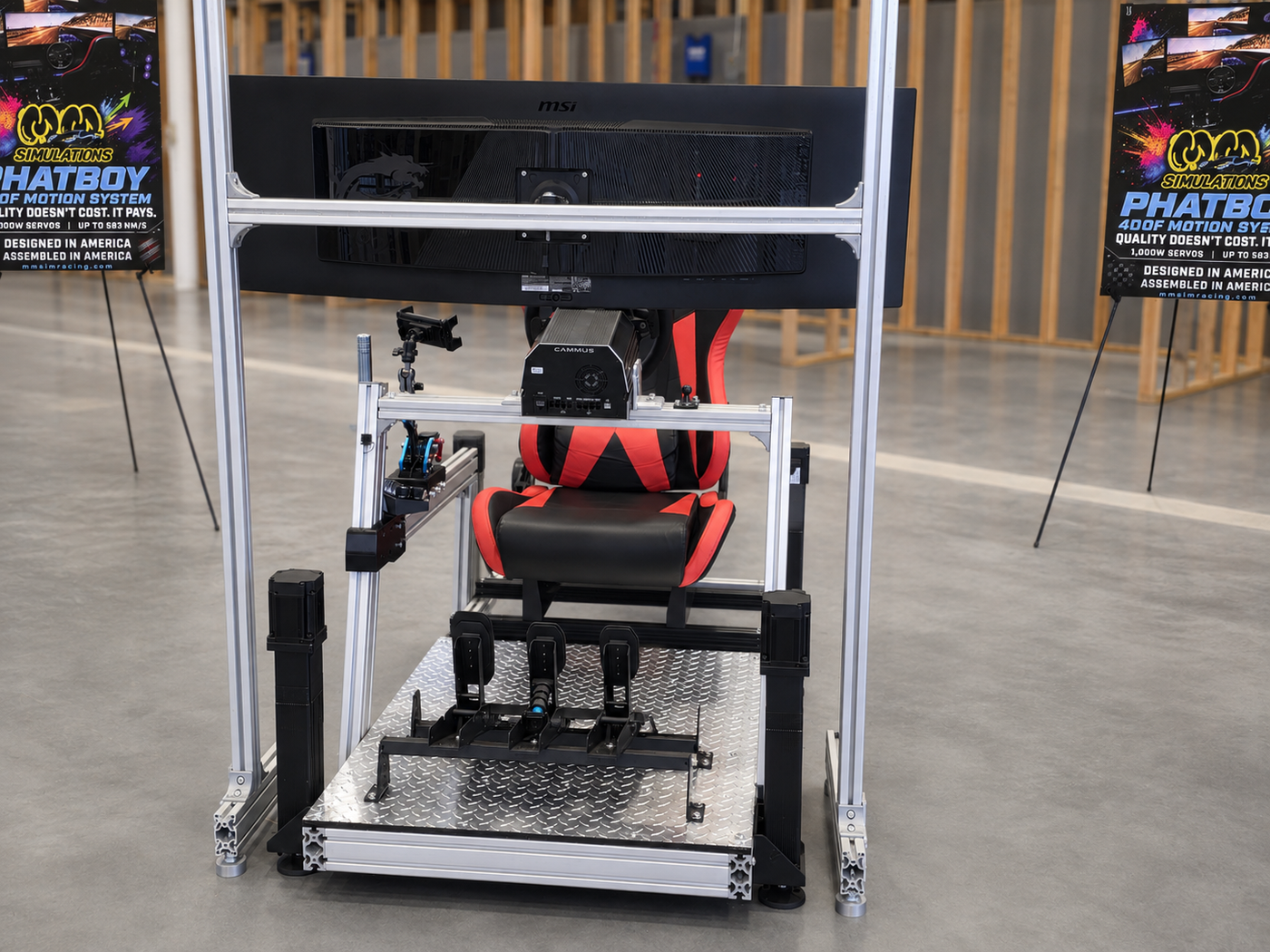

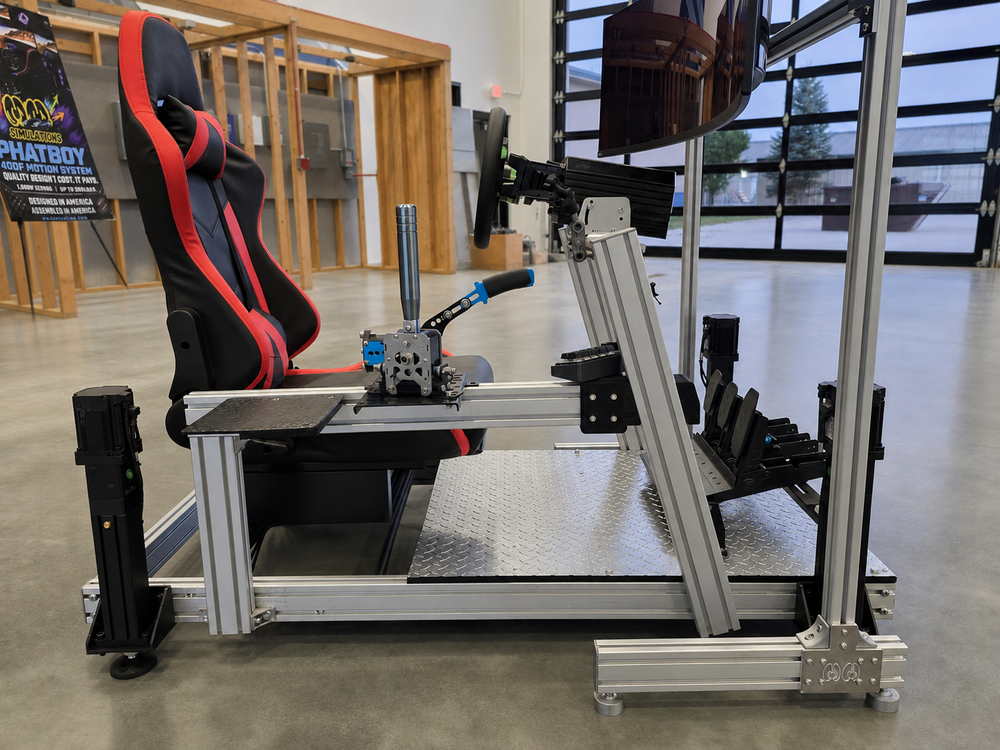

PhatBoy Turn Key 200MM 4DOF Flagship Motion Platform Commercial Use Ready

Bring the golf-simulator business model to the starting grid.

A golf simulator gives customers a reason to book a bay, bring friends, and come back for another round. The PhatBoy 200mm 4DOF turnkey motion simulator brings that same bookable-experience model to motorsport—with physical motion that makes the first lap memorable. Put a premium racing attraction at the center of your lounge, entertainment venue, or existing golf-sim business.

Turnkey from $27,000. Ultimate Package $38,000. White-glove installation included. Give guests the braking, curbs, elevation changes, and weight transfer they can feel—and give your venue an experience worth coming back for.

Build a grid. Bring the whole group.

A single PhatBoy delivers an unforgettable drive. Multiple rigs let friends race each other at the same time—sharing the starting grid, battling for position, and talking about the finish long after the session ends. With compatible multiplayer racing titles and a properly configured network, your venue can turn individual seat time into a shared racing event.

Give customers a reason to say, “Bring your friends—we’re going racing.” Side-by-side simulators put the competition in the room: couples can go head-to-head, friends can settle a rivalry, and coworkers can line up for their own race night. Everyone gets a seat in the action instead of waiting for a turn.

• Two rigs: open the door to head-to-head bookings for friends, couples, and friendly rivalries.
• Four rigs: give a group its own starting grid and offer private sessions for birthdays, team outings, and weekend get-togethers.
• Six or more rigs: create room for larger group bookings, league grids, and corporate race events, with capacity planned around your venue.

More rigs mean more seats you can sell during the same booking window. Package the experience as a group race session, reserve a grid for private events, and give league drivers a reason to return for the next round. A well-run group experience gives every guest a story to share—and a reason to bring someone new next time.

Request a multi-rig venue quote → Talk with MM Simulations about a two-, four-, or six-plus-rig installation, including space, power, networking, and the racing experience you want to offer. Each simulator is purchased separately; multi-rig projects are quoted to your configuration.

Multiple ways to fill your grid.

• Paid driving sessions: sell a first taste of racing, longer practice sessions, and premium motion experiences.
• Memberships and repeat visits: give regulars a place to improve their lap times and chase their personal best.
• Leagues and competitions: build a calendar that brings your racing community back week after week.
• Private and corporate events: turn friendly competition into a birthday, team outing, or customer event.
• An attraction for an existing venue: add racing to your golf-sim lounge or entertainment offering and introduce current guests to a new reason to stay.

Plan your starting grid around the groups you want to attract, with room to expand as demand grows. Your opportunity comes from session pricing, simultaneous paid seats, repeat customers, private events, and consistent utilization. Revenue depends on your market, operating hours, pricing, and costs; no earnings or payback period is guaranteed.

White-glove installation is included.

This commercial turnkey package includes white-glove installation, so you have MM Simulations helping bring the equipment into service. We coordinate installation with you, including motion configuration and the included tuning profiles. After installation, your included remote assistance gives you time to fine-tune the experience as you use the system. Your selected package determines the final hardware configuration.

Site preparation and local approvals: plan for a 240V AC supply with a recommended 20A circuit. Depending on your location, the local authority having jurisdiction (AHJ) may require an additional on-site inspection or third-party field evaluation. If required, these services are a separate site-preparation expense paid by the purchaser and are not included in white-glove installation.

Inspection and evaluation costs are quoted individually based on local requirements, the provider, location, and scope of work; travel, corrective work, and repeat visits may cost extra. Obtain a site-specific quote and confirm local requirements before scheduling installation.

The experience guests will remember.

The PhatBoy translates compatible racing telemetry into physical movement. Brake into a corner and feel the chassis pitch. Clip a curb and feel the response. Crest a hill, load the suspension, or transition through a series of corners—the experience extends beyond the screen and steering wheel.

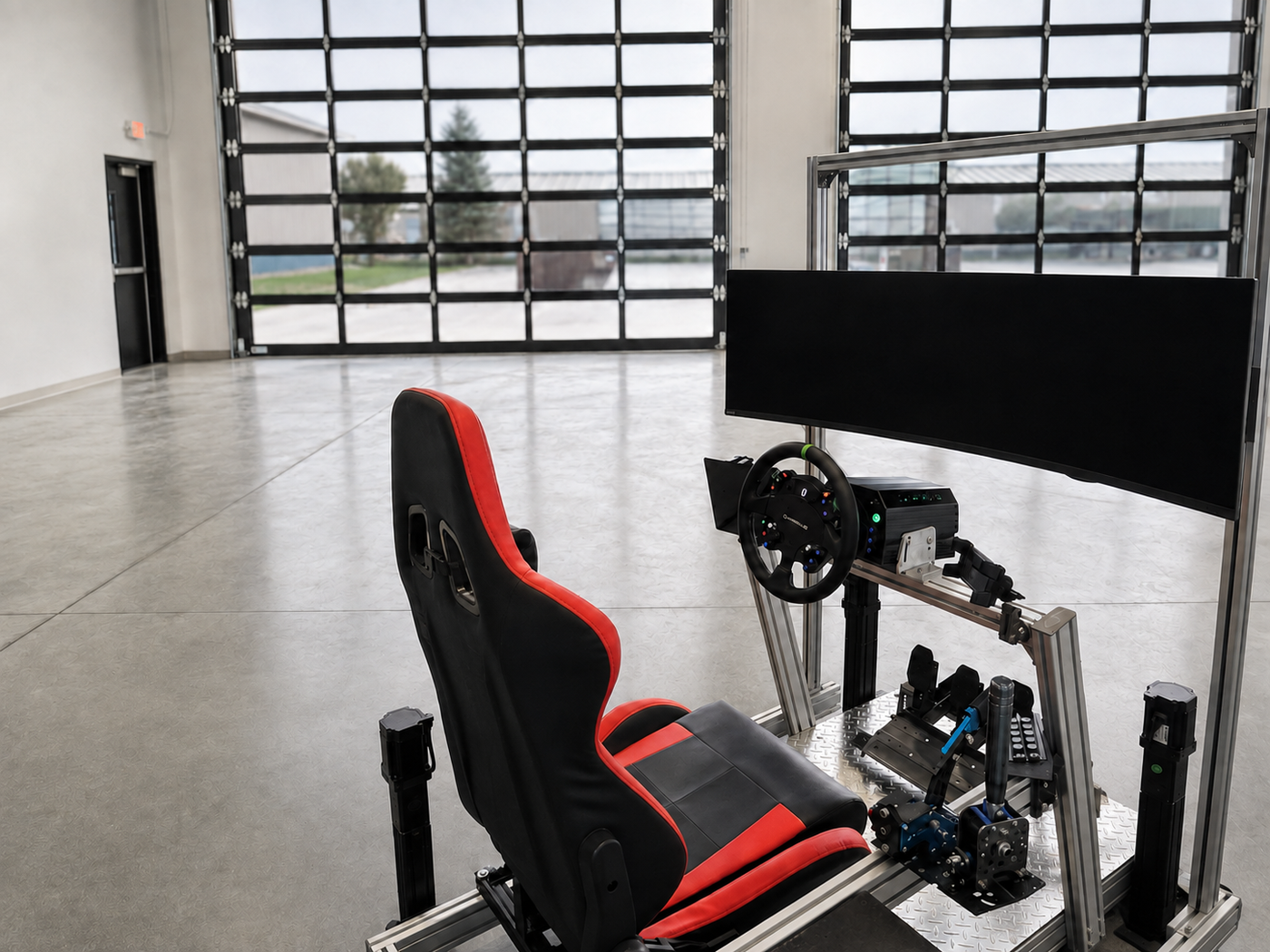

200mm of actuator travel, 1kW AC servo motors, and a rigid aluminum structure give this platform its range and response. Motion intensity and tuning can be matched to the supported title and driving experience. From a guest's first lap to an enthusiast's practice session, the hardware is built to make driving feel involving.

Manage bookings and guest PC access.

ggLeap by ggCircuit is an optional, cost-conscious venue-management platform to evaluate for your lounge. It supports online bookings, session and account management, payments, and a controlled guest PC interface. Configurable client security policies help restrict guest access and reduce PC tampering.

It offers a practical starting point for managing paid seat time and guest access from one system. Review ggLeap features and current pricing. The software subscription is separate from the rig purchase; confirm current plan terms, your racing-title workflow, and commercial game licensing before launch.

Serious motion hardware.

• Motion: 4DOF platform with 200mm actuator travel
• Drive: 1kW AC servo motors; 25mm ball screws with 10mm lead
• Feedback: 16-bit servo feedback
• Motor speed: up to 3,000 RPM in the normal operating range
• Linear speed: approximately 500+ mm/sec, depending on configuration and tuning
• Structure: heavy-duty aluminum platform
• Power: 240V AC; recommended 240V / 20A circuit
• Control: MM Simulations motion control with supported SimHub telemetry integration

Configured with support behind it.

The turnkey package includes the direct-drive wheelbase, steering wheel, pedals, shifter, and handbrake specified for the selected build. Confirm your final seat, display, PC, and peripheral specification with MM Simulations before ordering so the installation matches your venue.

MM Simulations preset tuning profiles for up to four supported racing titles are configured as part of installation. A one-year parts warranty is included, subject to the warranty terms.

We service what we sell. Remote and in-person troubleshooting, additional profiles, custom tuning, upgrades, and relocation support are available. Services outside your selected package, including additional on-site visits, upgrades, and relocation, are quoted separately. Warranty coverage remains subject to its terms.

Build your venue's next attraction.

Choose your configuration below or talk with MM Simulations about your commercial installation. Whether you are adding your first attraction or building a full racing grid, we can help align your simulators, site preparation, and launch plan. Ask about a multi-rig configuration built for the groups you want to bring through the door.

Manufacturing and delivery: standard motion-rig production is typically 30–45 days; allow the stated 30–60-day production and delivery window. The expedited manufacturing option shown in the configuration selector has its own production schedule. Coordinate delivery and installation timing before your opening date.
