CLASSIC
Horizontal position
A familiar road-car style arrangement for rally, touring cars, and cockpit layouts that place the lever beside the seat.
CONSPIT MM Simulations
CONSPIT H3 Hydraulic Handbrake
Set the rear of the car in motion with a deliberate, progressive pull. The H3 combines hydraulic resistance, a 10 MPa pressure sensor and four mechanical force settings in a compact aluminum body. Choose a horizontal or vertical lever position to suit your cockpit, then calibrate the response in CONSPIT LINK 2.0.
$309.00
In stock
Financing available on eligible purchases. View Affirm and Shop Pay details
Shipping and returns
CONSPIT items typically ship the next day. Carrier transit time is additional.
Eligible change-of-mind or buyer's-remorse returns must be requested within 14 calendar days of delivery. A 15% restocking fee and return freight apply to those voluntary returns. See eligibility, exclusions, and full return terms.
Defects are handled through warranty support.
The manufacturer's standard limited warranty applies. Valid warranty claims are separate from change-of-mind returns and have no change-of-mind restocking fee. Contact Mitchell first for CONSPIT warranty claims. View warranty and return details.
Build it right the first time.
Explore the details
Need a second look at your wheelbase, quick release or cockpit fit? Talk to MM Simulations.
CONSPIT H3 · HYDRAULIC CONTROL
Catch the slide.
Hold the line.
The H3 turns a handbrake pull into usable information. Progressive hydraulic resistance lets you feel the build-up, find the exact release point, and control rear-wheel slip with intent.
10 MPaHydraulic sensor
2nd GenHydraulic system
2 ModesHorizontal or vertical
1.04 kgCNC aluminum body
FEEDBACK YOU CAN MODULATE
More than on or off.

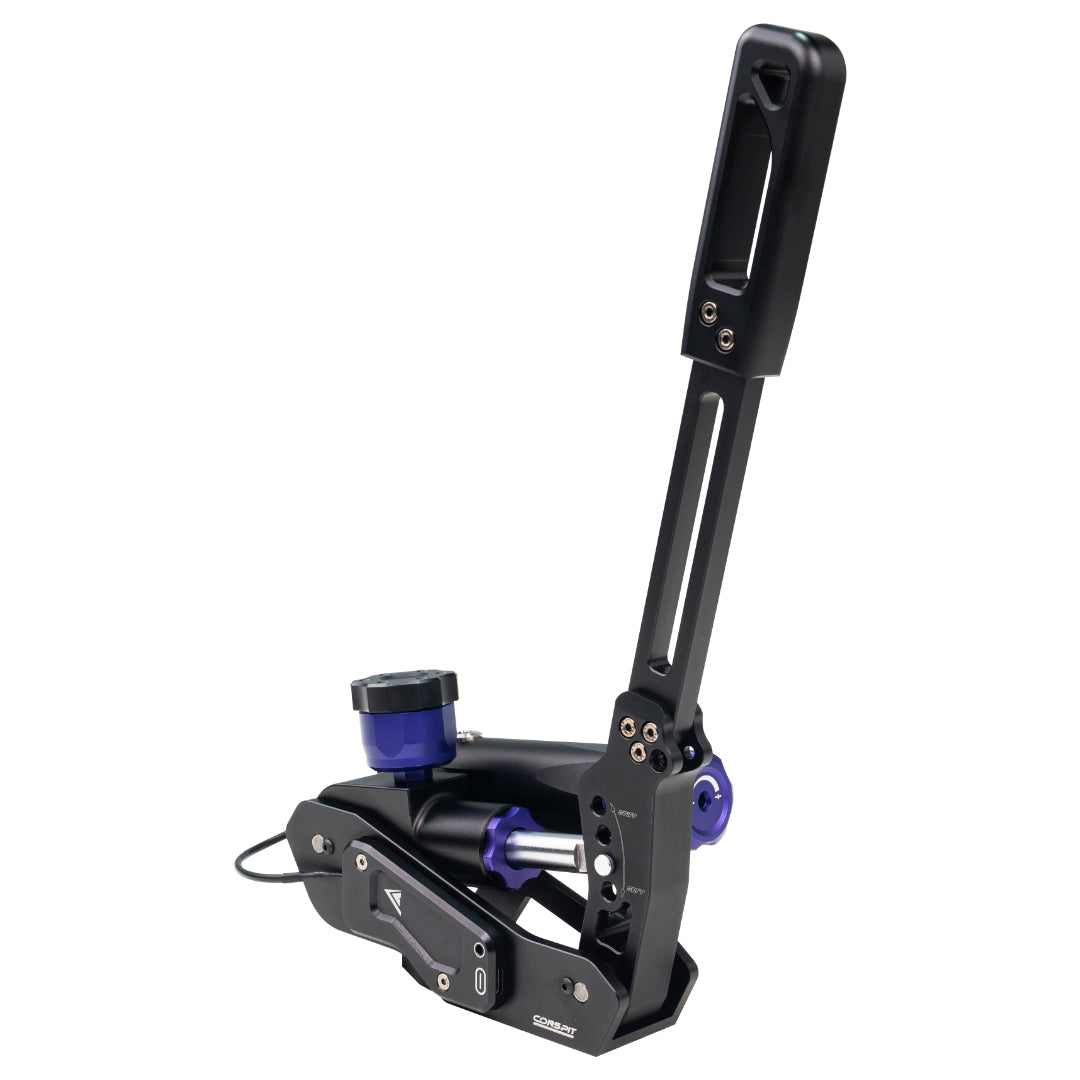

A redesigned internal oil circuit, high-performance elastomer, extended piston, and precision-machined cylinder create smooth hydraulic damping. The result is a progressive pull you can repeat corner after corner.
01
ROTATION, ON COMMAND
Initiate with precision.
In rally, drifting, and tight rallycross hairpins, timing is everything. The 10 MPa hydraulic sensor reads small force changes so you can build pressure, break rear traction, and release without guessing.
- Progressive hydraulic resistance
- Zero mechanical free play
- Sealed metal bearings for consistent travel
- Maintenance-free oil reservoir
Race-grade CNC aluminum02
TUNE THE PULL
Four force positions.
Your muscle memory.
Select a force level to see how the H3 can match different driving styles. The mechanical pin gives you a clear, repeatable adjustment before you fine-tune the response curve in CONSPIT LINK 2.0.
LIGHT · QUICK INPUT
Fast lever movement for frequent corrections and a lighter pull.
03
DUAL-POSITION LEVER
One handbrake.
Two disciplines.
COMPETITIVE

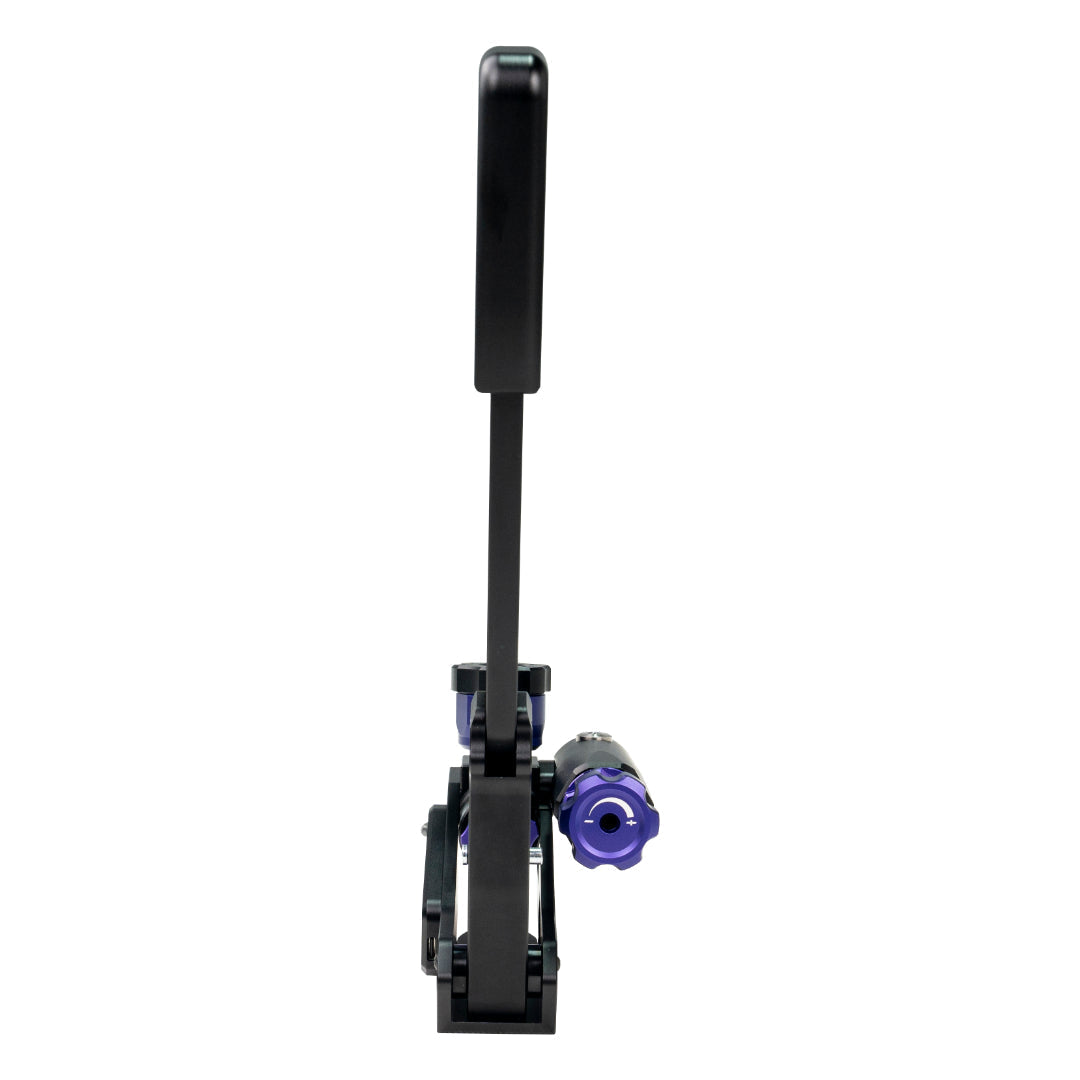

Vertical position
Keep the lever close to the wheel for rapid drift transitions and compact rally-style control placement.
04
BUILT TO STAY SHARP
Solid where it matters.
A fully enclosed shaft design helps resist dust. High-specification sealed bearings, a dense surface coating, and precisely machined internal components are engineered for stable feedback through long sessions.
CHOOSE YOUR H3 ↑- Sensor
- 10 MPa hydraulic
- Dimensions
- 218 × 81 × 320 mm
- Weight
- 1.04 kg
- Material
- CNC aluminum alloy
- Mounting
- Bottom Ø6 through holes
- Platform
- PC
- Connections
- USB direct · CONSPIT CAN
- Included cables
- USB · CAN data cable
- Software
- CONSPIT LINK 2.0
MM SIMULATIONS SUPPORT
Hardware is only half the experience.
Purchase through MM Simulations and you have a North American team that services what it sells. Need help with mounting, calibration, mapping, or integrating the H3 into a larger CONSPIT setup? Remote guidance and paid service are available.
CONSPIT H3$309.00
